Robust, One-Piece Integrated Design for Maximum Integrity

The F-Type (Closed-Body) Glass-Lined Reactor is the definitive choice for large-scale chemical manufacturing where structural strength and leak prevention are paramount. Featuring a permanent, one-piece integrated seal between the vessel head and the body, this design eliminates the need for large-diameter main flange gaskets, significantly reducing potential leak paths and maintenance requirements in high-pressure environments.

For streamlined maintenance and internal inspection, each reactor is equipped with a strategically positioned, reinforced manhole on the reactor head. This ensures that operators can safely and efficiently access the vessel for part replacement or cleaning validation without compromising the unit's monolithic integrity.

High-Capacity Performance: From 1,500L to 90,000L+

Designed to serve as the heart of heavy industrial production lines, the F-Type reactor is built for durability under demanding conditions. Whether you are scaling up a pilot process or managing a massive chemical plant, our range covers every requirement:

• Standard Capacities: F1500L, F2000L, F3000L, F5000L, F10000L, up to F90000L.

• Custom Configurations: Beyond our standard models, Equipodia provides bespoke engineering services for non-standard volumes and specialized nozzle orientations to fit your existing plant layout.

Advanced Materials & World-Class Enamelling

Every F-Type reactor undergoes a precision-controlled enamelling process using our patented TJ09, TJ16, and TJ21S high-performance enamels. This fusion of glass and steel creates a barrier that is:

• Corrosion Resistant: Impervious to most aggressive organic and inorganic acids.

• Thermal Shock Resistant: Engineered to withstand rapid temperature shifts during exothermic reactions.

• Impact Durable: A high-bond strength enamel that minimises the risk of fracture, ensuring an industry-leading service life.

Applications in Demanding Environments

The F-Type is the preferred workhorse for industries requiring high-volume throughput and absolute product purity:

• Petrochemicals & Bulk Chemicals: Exceptional resistance to corrosive reagents at high temperatures.

• Large-Scale Pharmaceuticals: Smooth, inert surfaces prevent catalytic contamination and ensure high-yield API production.

• Agrochemicals: Reliable performance for the bulk synthesis of pesticides, herbicides, and liquid fertilizers.

Technical Specifications & Custom Design

At Equipodia, we don't just supply equipment; we provide engineered solutions. Our F-Type reactors can be customized with various jacket types (plain, limpet, or dimple) and agitation systems to meet your specific heat transfer and mixing requirements.

Need a Tailored Reactor Solution?

F-Type Glass-Lined Reactors: Engineered for Industrial-Scale Production

Notes

1. Calculated Capacity
   The listed volume refers to the space below the high neck flange, excluding the volume occupied by the flange itself.

2. Support Options
   Customers may specify their preferred support type when placing an order.
   If no preference is given, the reactor will be supplied with standard exterior lugs.

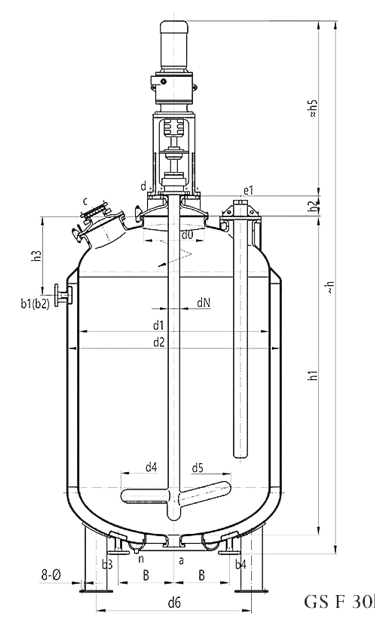

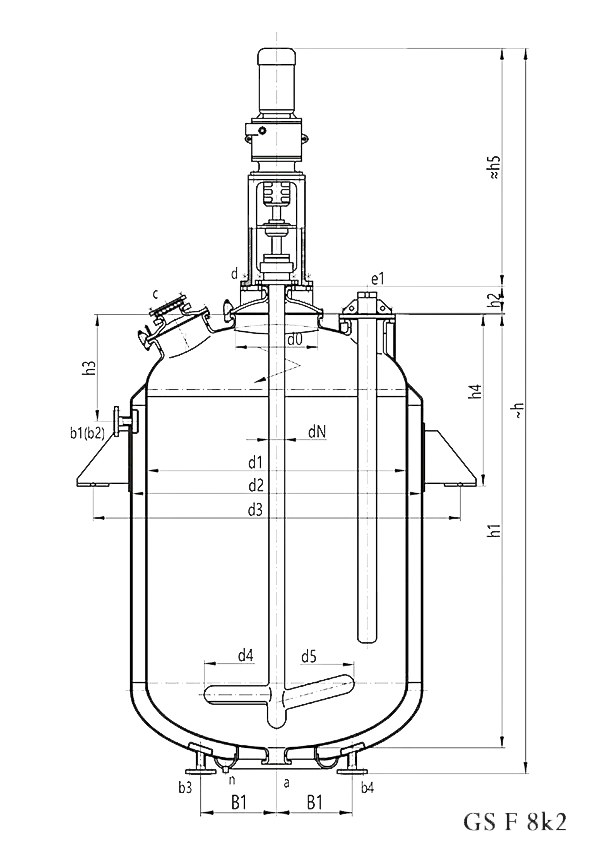

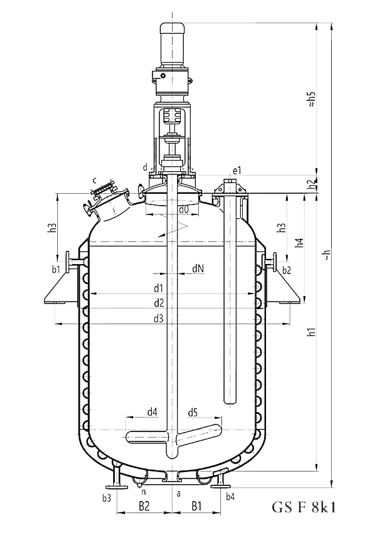

3. b1 and b3 Dimensions
   The values for b1 and b3 depend on the type of heating/cooling system: For full jackets, refer to the values before the slash (/). For half-pipe systems, use the values after the slash (/).

4. Drive Device Parameters

   For Reference Only: The listed drive parameters are for general guidance.

   Final Selection: The actual rack reducer will be chosen based on the specific requirements of your application.

Notes

1. Calculated Capacity

   The calculated volume refers to the space below the high neck flange. It does not include the volume occupied by the flange itself.

2. Support Options

   Customers may specify their preferred support type when placing an order. If no preference is indicated, the default support will be lugs welded to the exterior of the vessel.

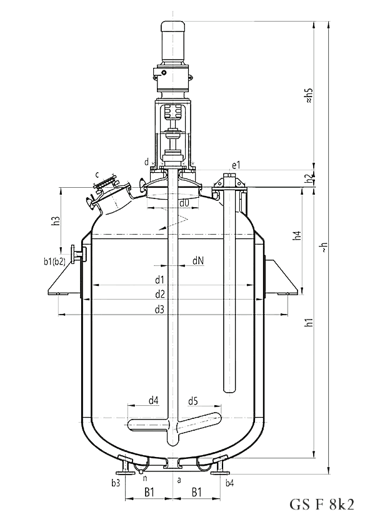

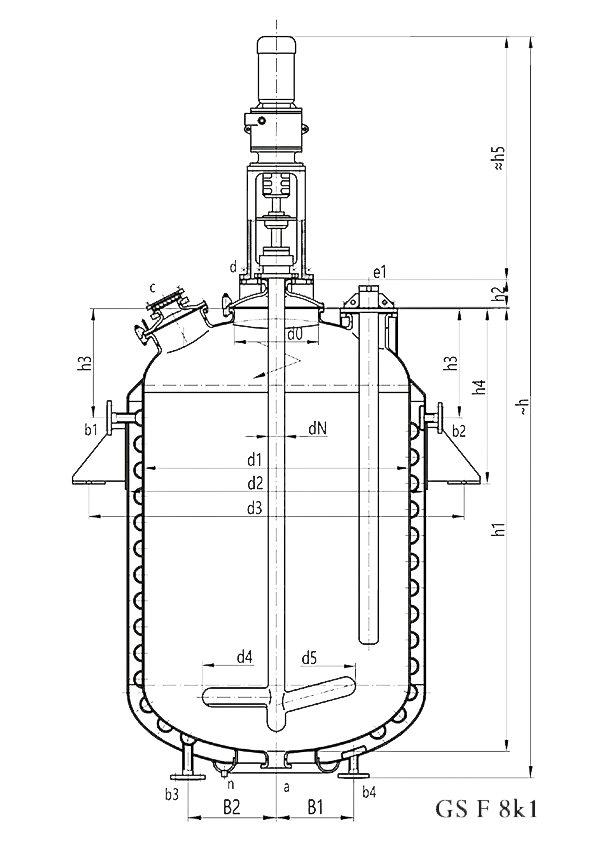

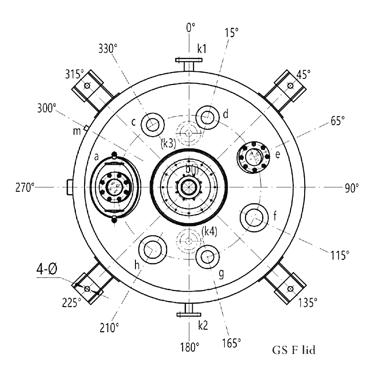

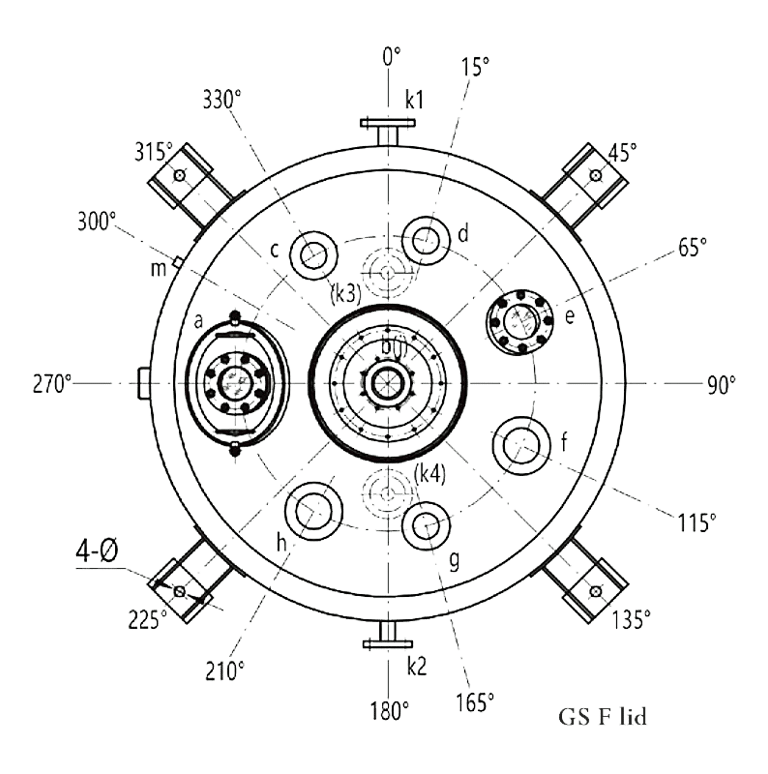

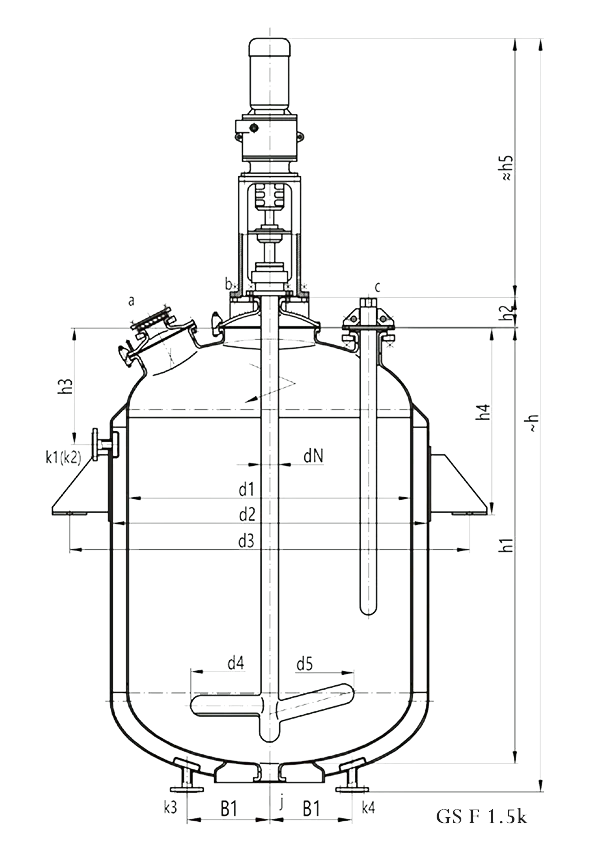

3. k1 and k3 Dimensions

   The values of k1 and k3 depend on the heating/cooling system configuration: For full jackets, use the values listed before the slash (/). For half-pipe jackets, use the values after the slash (/)

4. Drive Device Parameters

   Reference Only: Provided drive specifications are for general reference.

   Final Selection: The appropriate rack reducer type will be selected based on the specific needs of your application.

Notes

1. Calculated Capacity
   The listed volume refers to the space below the high neck flange, excluding the volume occupied by the flange itself.

2. Support Options
   Customers may specify their preferred support type when placing an order.
   If no preference is given, the reactor will be supplied with standard exterior lugs.

3. Drive Device Parameters

   For Reference Only: The listed drive parameters are for general guidance. Final Selection: The actual rack reducer will be chosen based on the specific requirements of your application.
